About The Product
Valvyn Flame Arrestors are critical safety devices designed to prevent the propagation of flames in pipelines, storage tanks, and process systems handling flammable gases and vapours. Engineered with precision and manufactured to stringent quality standards, Valvyn flame arrestors ensure reliable protection against fire and explosion hazards in industrial applications.
Flame arrestors operate on the principle of heat absorption and flame quenching. The internal element, consisting of crimped metal ribbons or perforated plates, dissipates heat from the flame front, reducing its temperature below the ignition point and thereby stopping flame propagation.

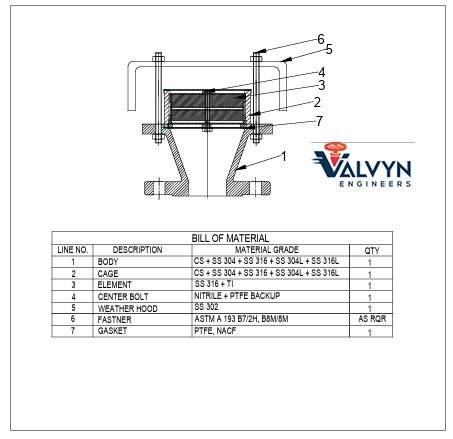

End-of-Line Flame Arrestors (Model - VYN-FA-DT/DF-1100): Installed at vent outlets to prevent atmospheric ignition from entering the system. Type of Combustion/Explosion Behaviour – Deflagration/Detonation

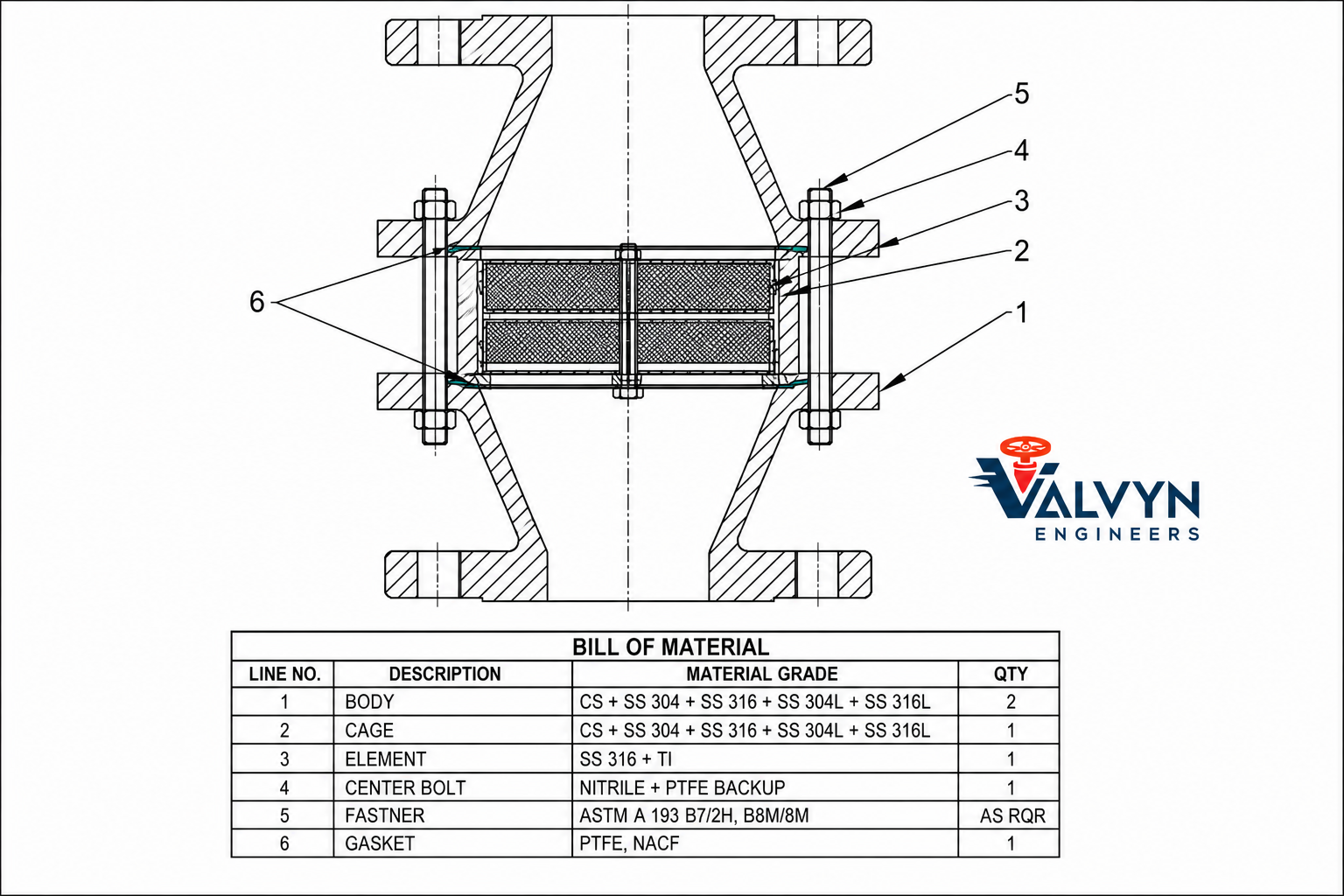

In-Line Flame Arrestors (Model - VYN-FA-DT/DF-2200): As per requirement
Mounted within pipelines to stop flame transmission between process units. Type of Combustion/Explosion Behaviour – Deflagration/Detonation
