About The Product

Safety Relief Valve (VYN-SRV Series) The technical specification of a safety relief valve (SRV) is defined by its ability to protect pressurized systems from catastrophic failure by automatically discharging media when internal pressure exceeds a predetermined limit.

These specifications are governed by international standards, most notably ASME Section I and VIII for boilers and pressure vessels, and API 520/526/527 for refinery and oil/gas applications. Key parameters include the set pressure (where the valve begins to open), overpressure (the pressure increase above set point to reach full lift), and blowdown (the pressure drop required for the valve to re-seat).

Products

Safety Relief Valve

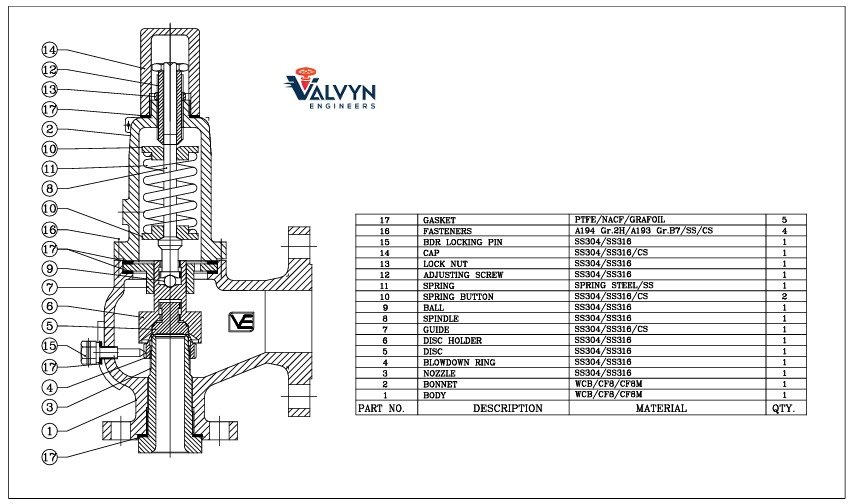

Model Number:VYN-SRVF-10 Series

Features

    Automatic Operation

  • Opens automatically when pressure exceeds set limit
  • No external power or operator required

    • Fast Response (Pop Action)

  • For gas/steam service, valve opens instantly (pop action)
  • Prevents rapid pressure buildup and potential failure

    • Self-Closing (Reseating)

  • Valve reseats automatically once pressure drops
  • Controlled by blowdown setting

Technical Specifications

  • Type:Spring-Loaded Type (Close Bonnet Type)
  • Function:Pop action (for gas/steam): sudden full lift Modulating action (for liquids): gradual opening
  • Set Pressure Range:1 bar to 100 bar (application dependent)
  • Body Material : WCB/CF8/CF8M/CF3/CF3M
  • Trim:Metal to Metal, Soft to Metal
  • Connections Screwed / Flanged (ANSI / DIN)
  • Sizes:15 NB x 25 NB to 150 NB X 200 NB (1/2” x1 to 6” x 8”)
  • Temperature Range: Up to 600°C
Safety Relief Valve

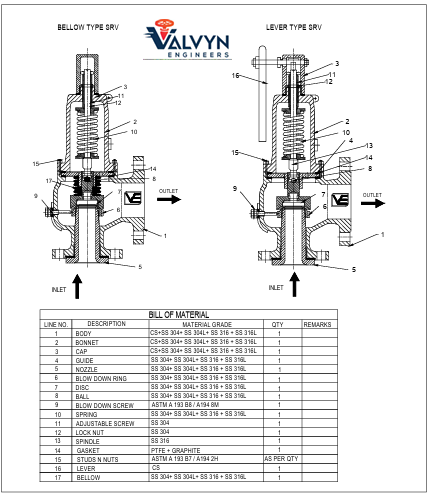

Model Number:VYN-SRVBF-11 Series & VYN-SRVFL-12 Series

Application

Chemical
Pharmaceuticals
Oil & Gas
Speciality Chemicals
FMCG
OEMs
